Link Conveyors



Link Conveyors

Telestack’s mobile Link Conveyors offer a complete range of conveyor systems to reduce / eliminate the need to for truck/wheel loader haulage on site. The Link Conveyors can either be track mounted, fully self driven or wheel mounted/ towable wheel mounted.


Key Features

  • Eliminate / Reduce the haulage distance of Trucks and Wheel loaders
  • Fully independent mobile link conveyors
  • Used in range of applications and industries
  • Fully customised lengths and designs
  • Range of mobility options

Description

Telestack Link Conveyors are designed for transferring material over large distances as conveying material is the most cost efficient and environmentally sound method of material transfer. Link conveyors offer a flexible solution to help reduce the high running costs of ‘load and haul’ operations using either dump trucks or wheel loaders as fuel, maintenance and operator costs are reduced. The link conveyor can be used on its own or in conjunction with other ground/field conveyors in a zig-zag or in line configuration

Options

  • Standard range include lengths from 15 metres, 18 metres, 24 metres, 30 metres, and up to 43 metres (142ft) for a range of applications.
  • Range of mobility options ranging from tracks, wheels and semi-mobile.
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, water suppression and many more.
  • Complete start/stop / monitoring programming when operating multiple units – Radio remote control.

Features & Benefits

  • Range of lengths to suit the specific application.
  • Fully tracked mounted units with integrated diesel engine for site movement – Electric driven belts.
  • Wheeled option available for operation on concrete / asphalt ground.
  • Complete Dust Suppression options for handling range of materials
  • Loading rates up to 2,000TPH.
  • Ability to handle up to 300mm (12”) material.
  • Flexible option compared to fixed overland conveyor systems.
  • Reduced civil requirements on site.
  • Can easily move ‘off-site’ when not in use.
  • Removes the need for a dedicated wheel loader to constantly remove material from the crusher, screen or shredder.
  • Reduces fuel cost by up to 75%
  • Reduces operating cost by up to 70%
  • Typical set up time of under 10 minutes.
  • Mobility gives optimum flexibility on site for machine application.
  • High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion.
  • 250 micron Specification paint finish



Options

  • Standard range include lengths from 15 metres, 18 metres, 24 metres, 30 metres, and up to 43 metres (142ft) for a range of applications.
  • Range of mobility options ranging from tracks, wheels and semi-mobile.
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, water suppression and many more.
  • Complete start/stop / monitoring programming when operating multiple units – Radio remote control.

Applications

  • Mobile links to reduce / eliminate the haulage distances of trucks / wheel loaders on site – Reduces fuel, labour and maintenance costs
  • Provides a mobile link between processing and conveying systems – Excavators, trucks, crushers/screeners and overland conveyors.
  • Mobile links can be utilized in range of applications including: Quarries, Mines, Stockyards, Ports / Inland Terminals, PowerStation’s and many more.
  • Easily ‘inserted’ into existing / new applications for increased mobility and flexibility on site
  • Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore’s (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more....

Options

  • Standard range include lengths from 15 metres, 18 metres, 24 metres, 30 metres, and up to 43 metres (142ft) for a range of applications.
  • Range of mobility options ranging from tracks, wheels and semi-mobile.
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, water suppression and many more.
  • Complete start/stop / monitoring programming when operating multiple units – Radio remote control.

Gallery

Images

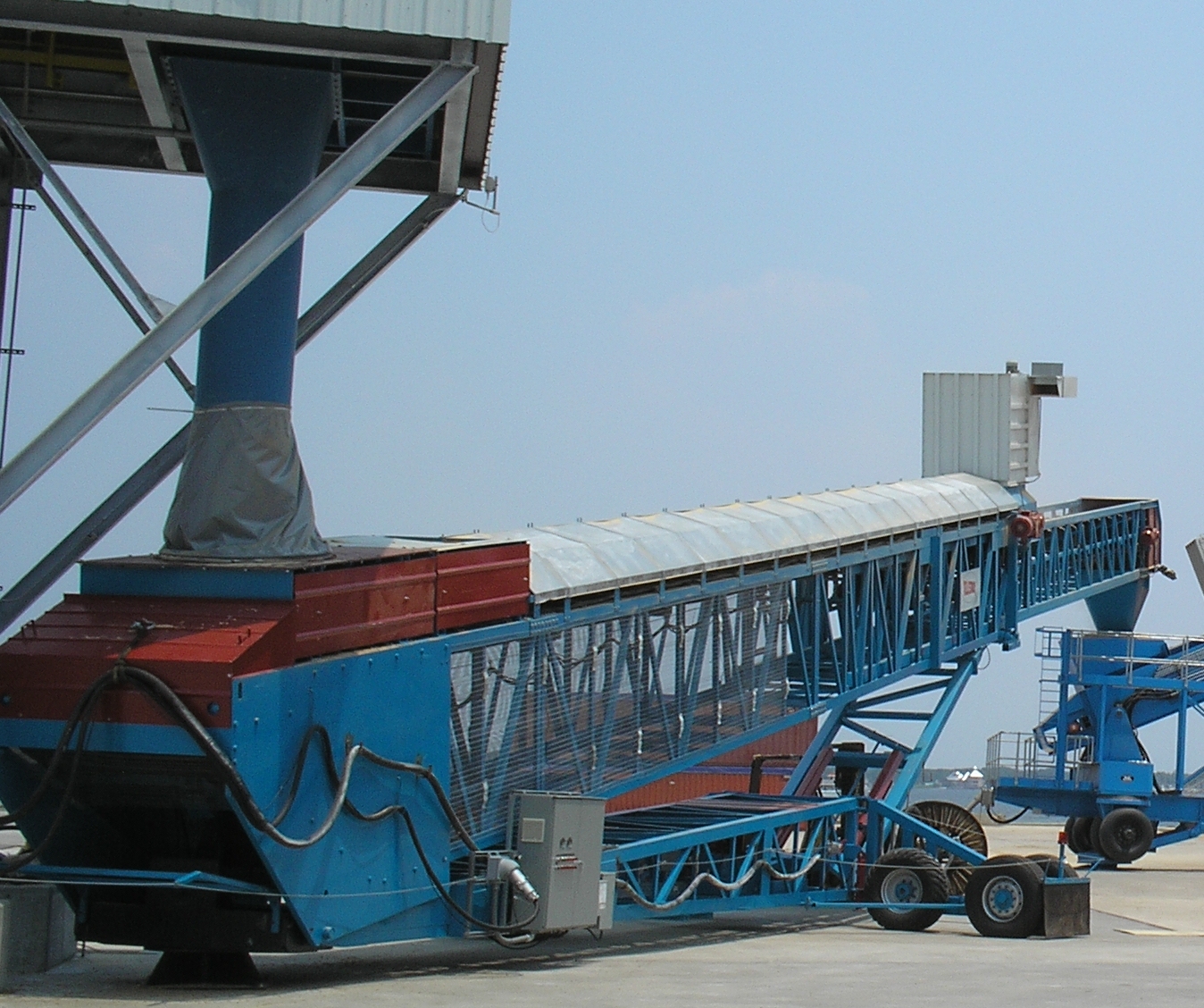

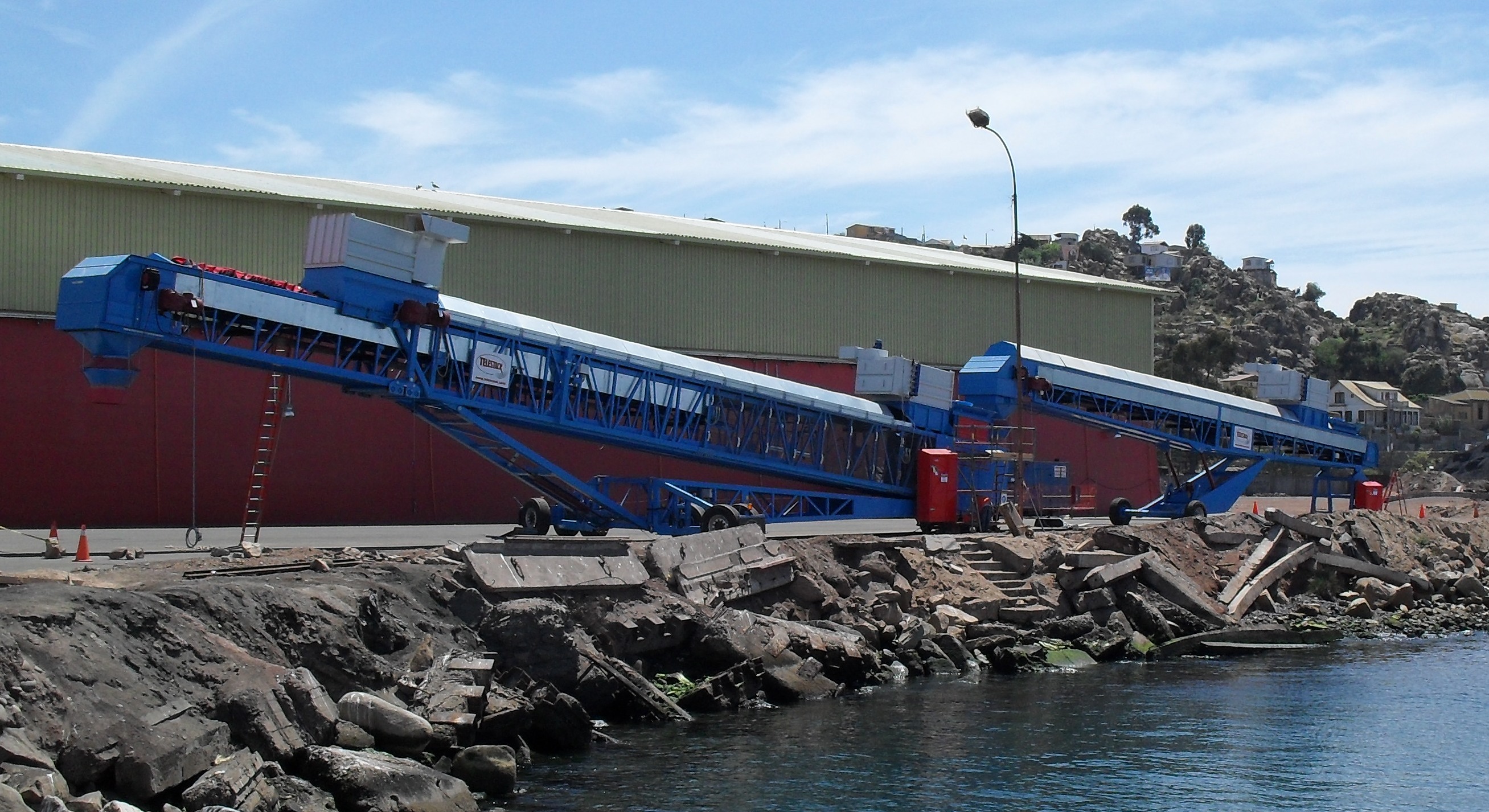

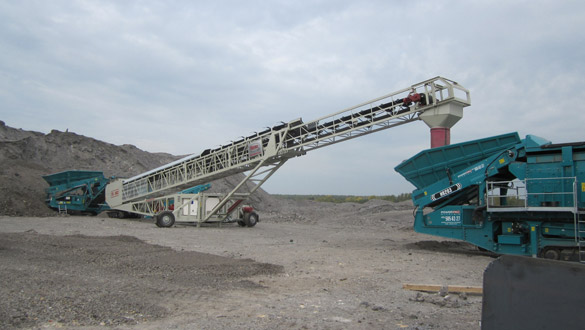

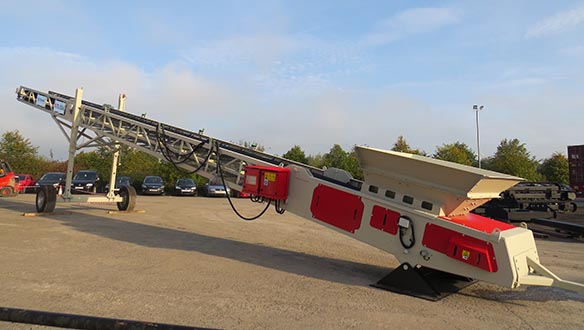

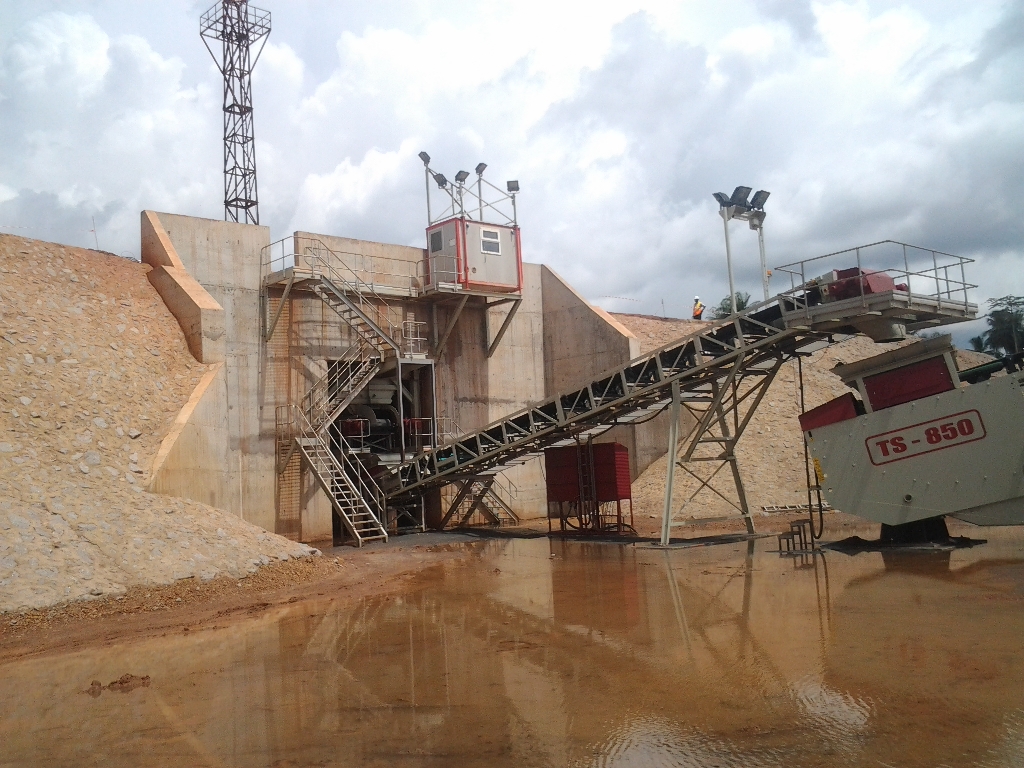

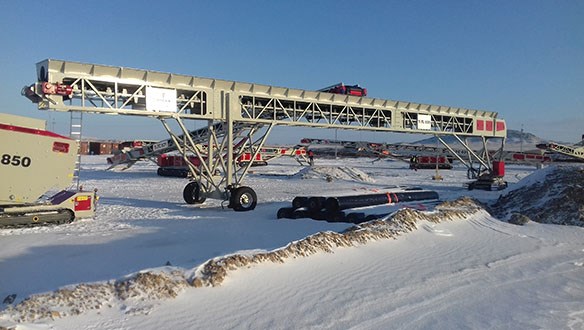

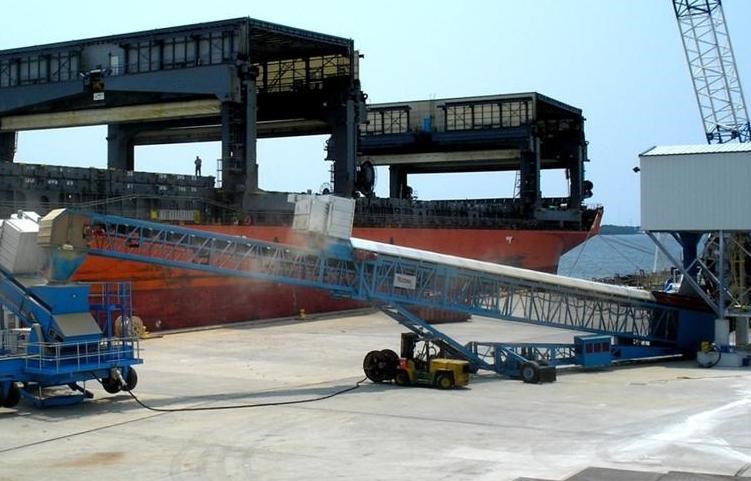

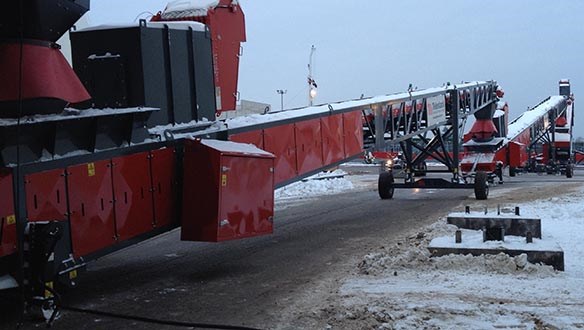

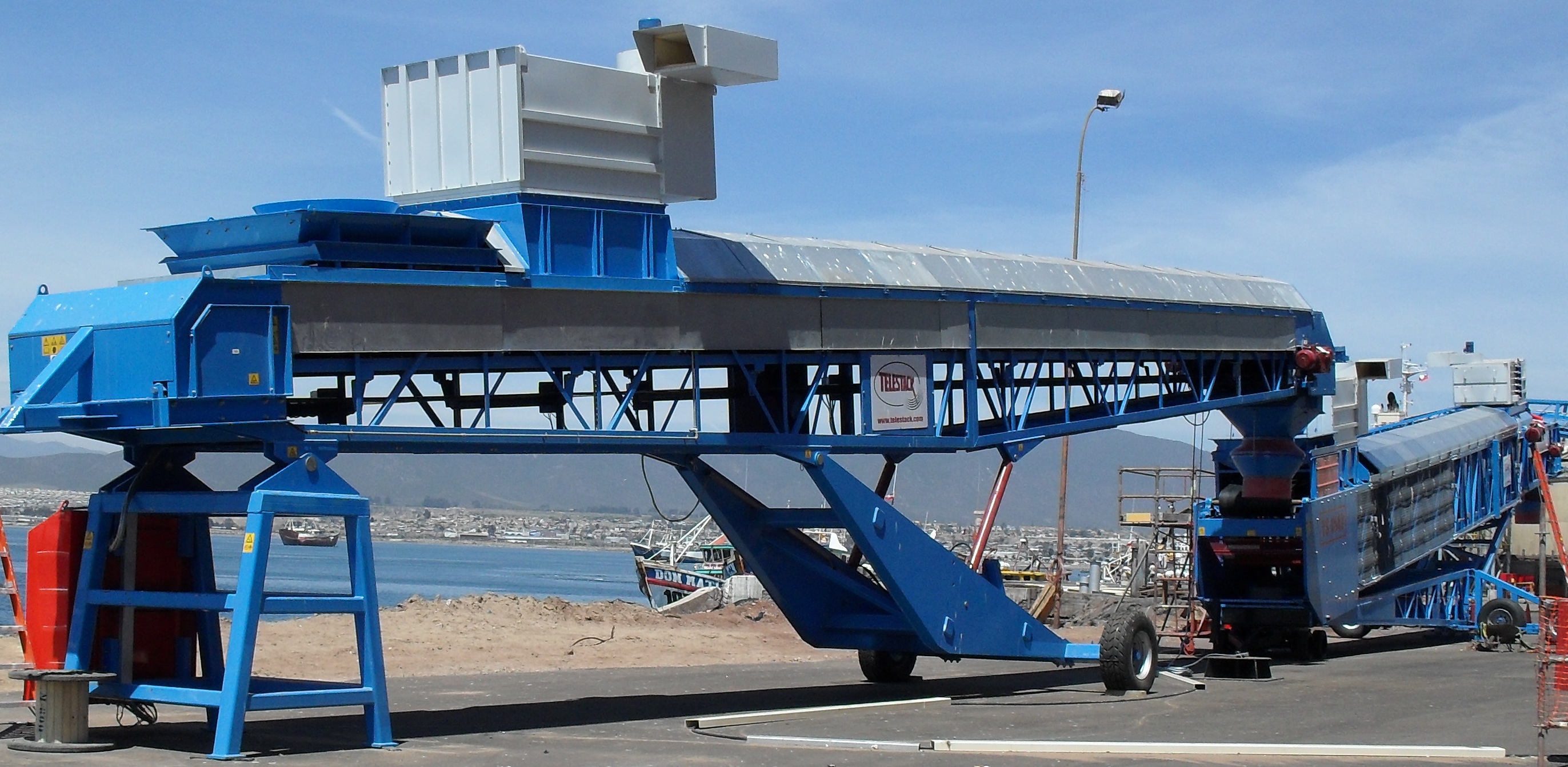

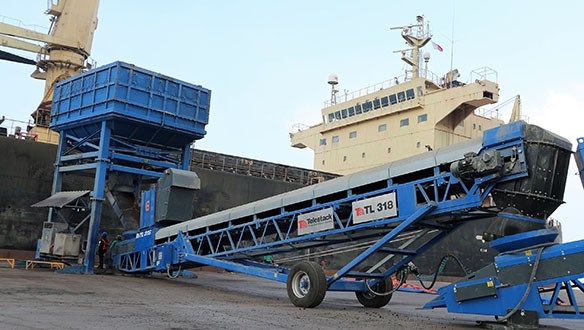

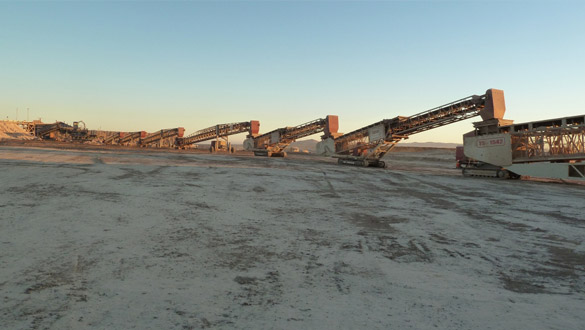

TT Link Conveyors

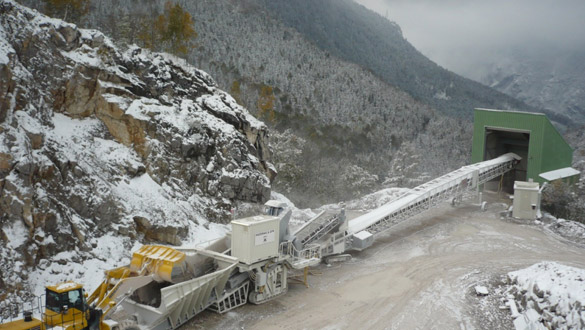

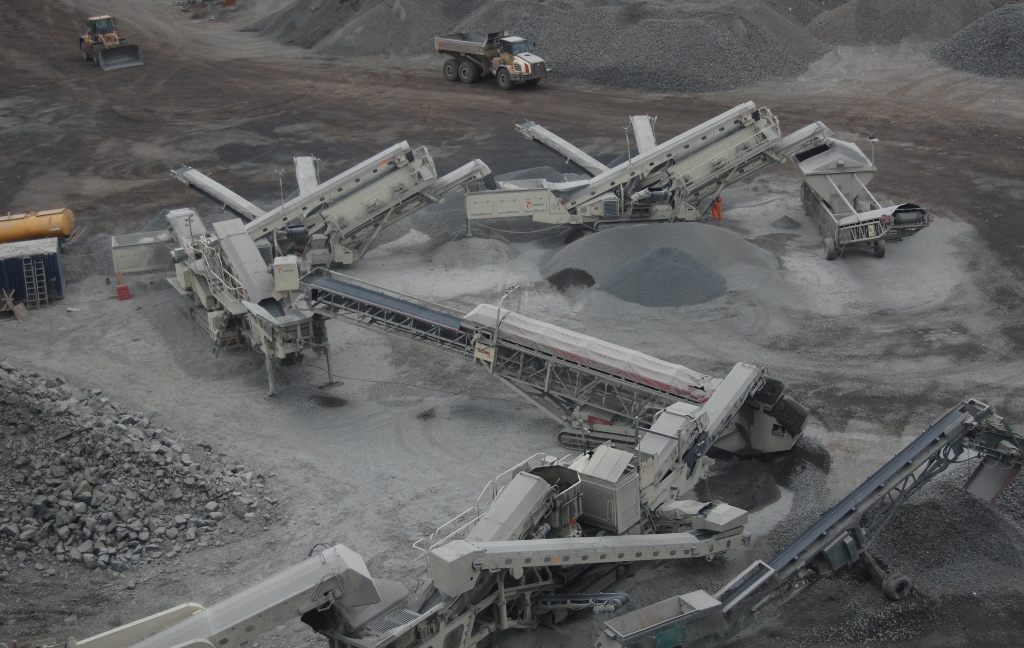

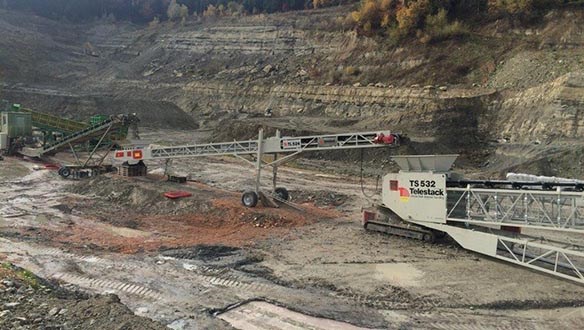

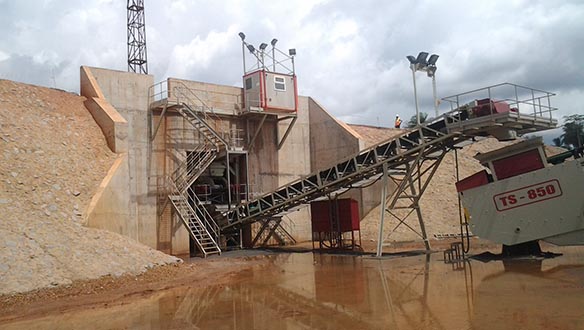

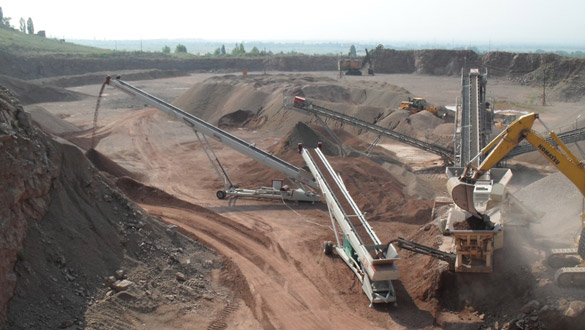

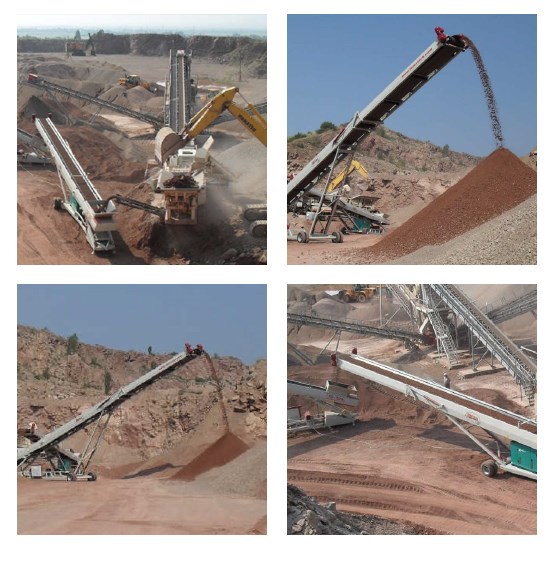

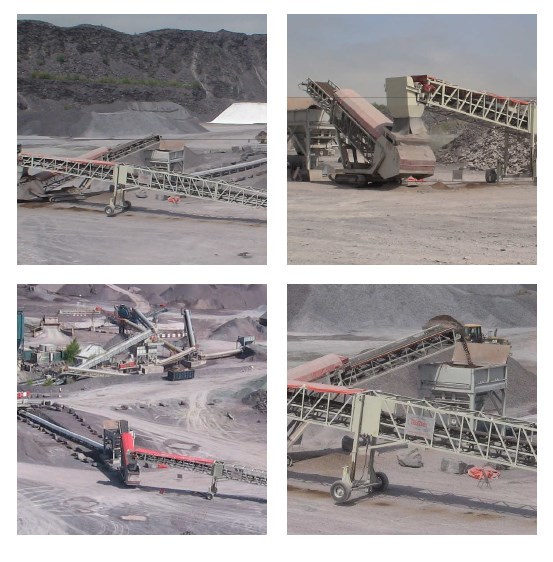

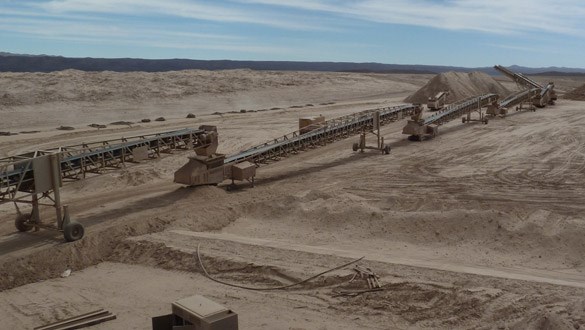

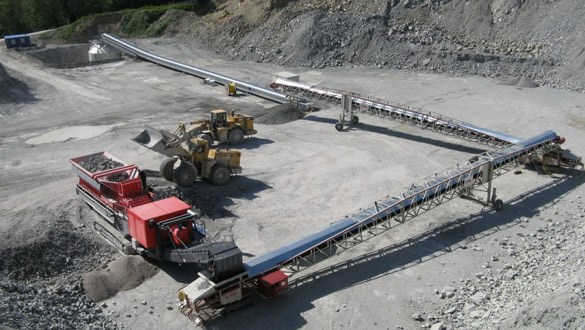

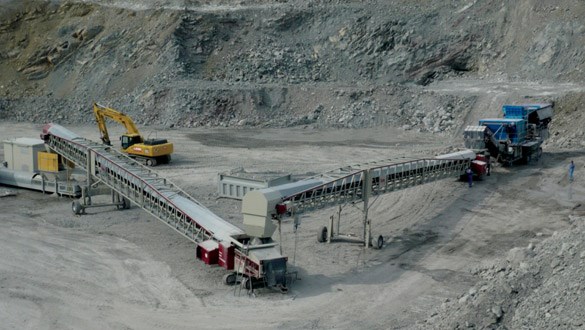

Track Conveyors working as Link Conveyors

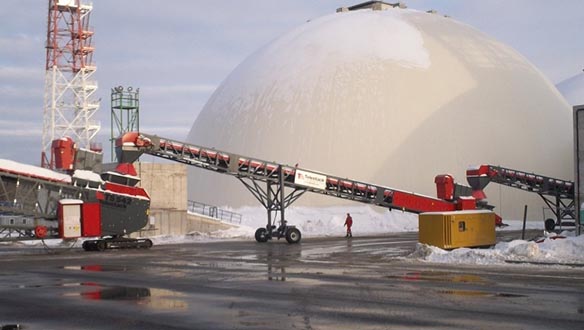

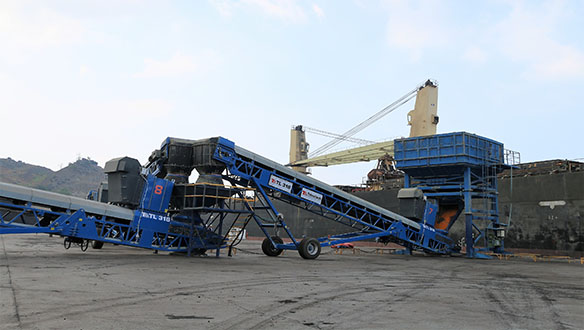

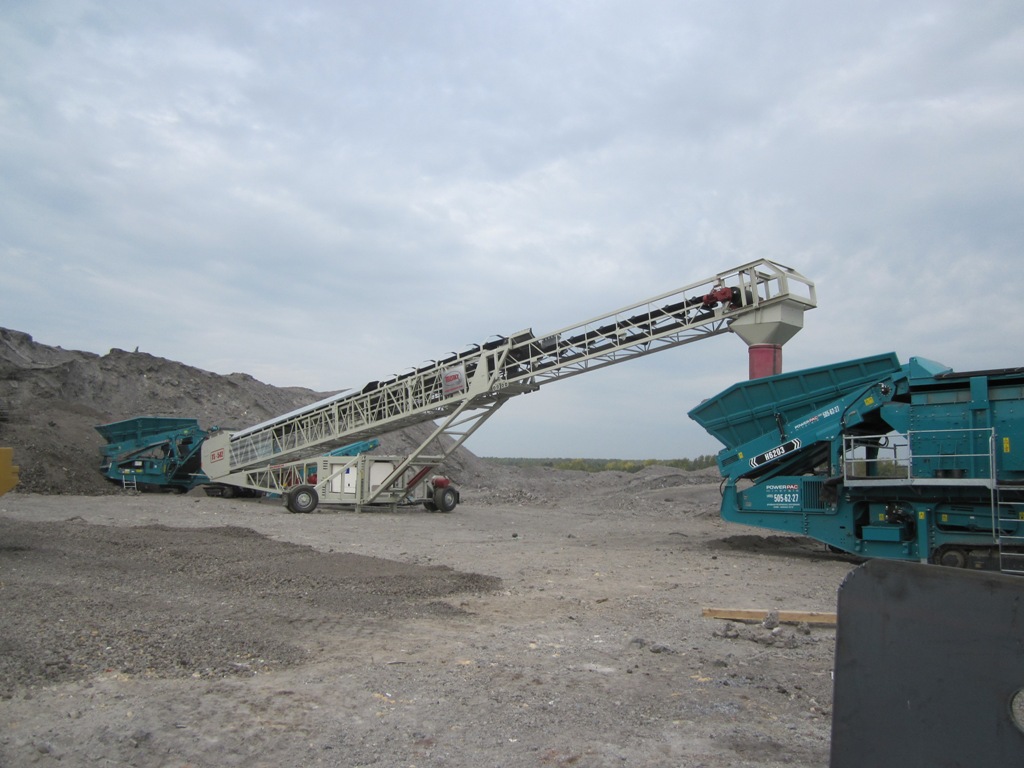

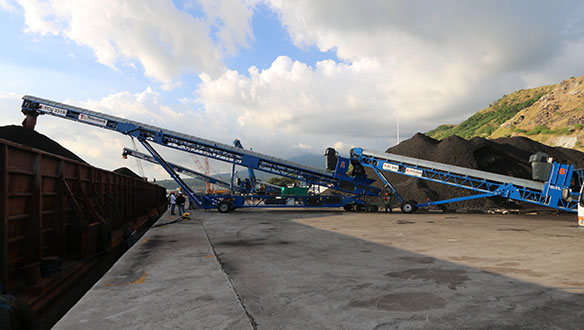

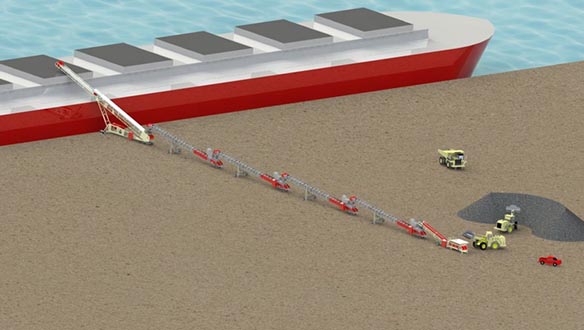

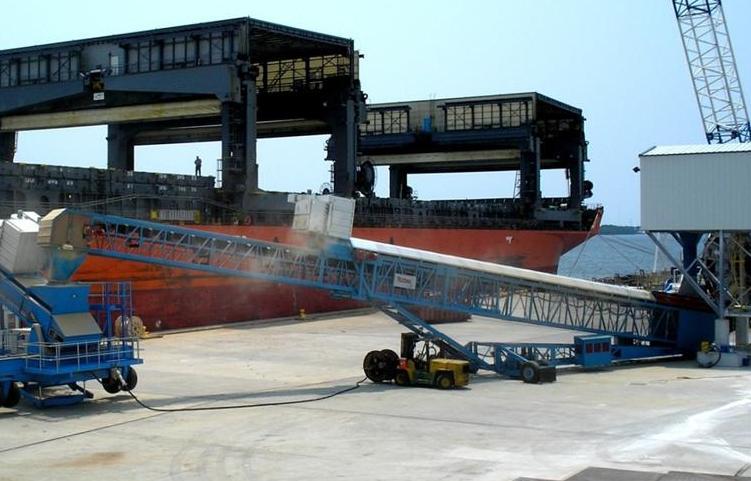

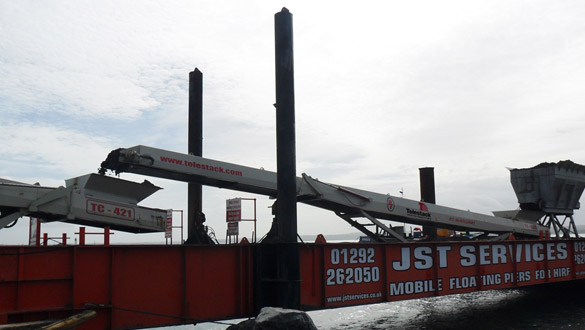

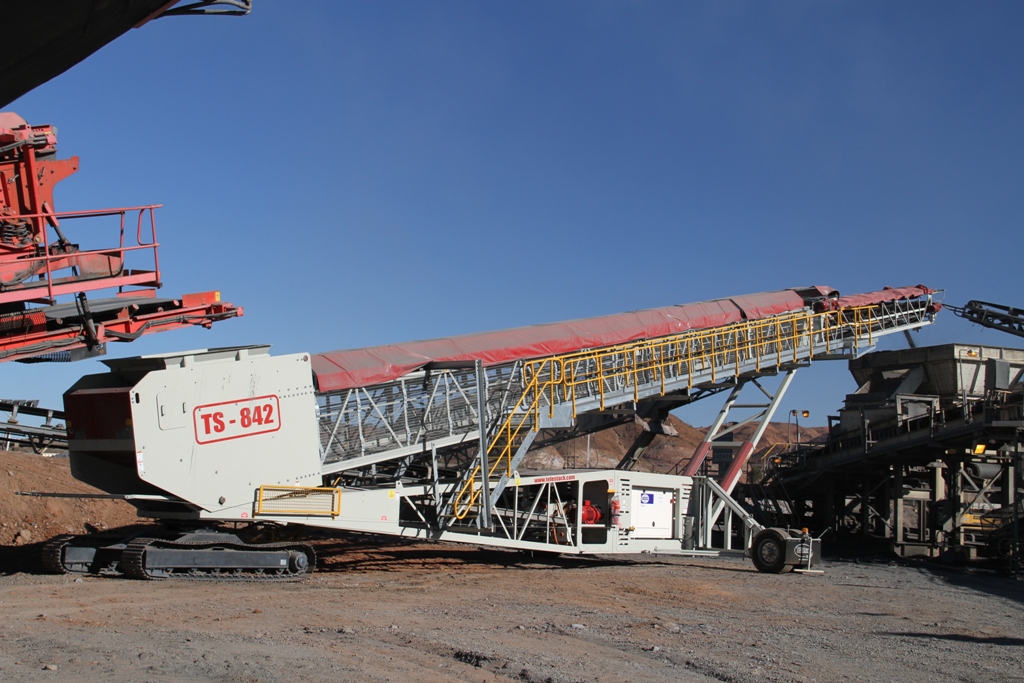

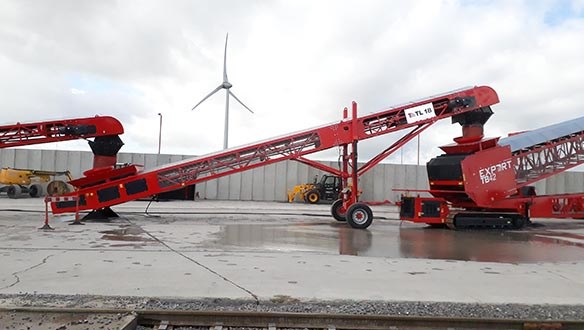

Telescopics working as Link Conveyors
