Rail Mounted Shiploader



Rail Mounted Shiploader

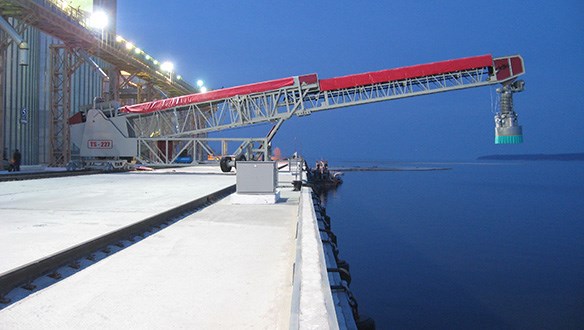

The Rail mounted telescopic shiploaders bring together the flexibility of the telescopic technology along with the ease of mobility of mounting on rails.

Key Features

  • The only rail mounted and radial telescopic shiploader on the market
  • Telescopic feature allows greater trimming capabilities along with the parallel travel of the rails

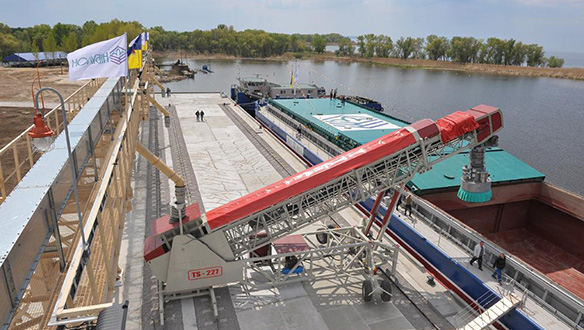

  • Easily integrated with tripper and hopper conveyor systems
  • Complete dust suppression/extraction and sealing

Description

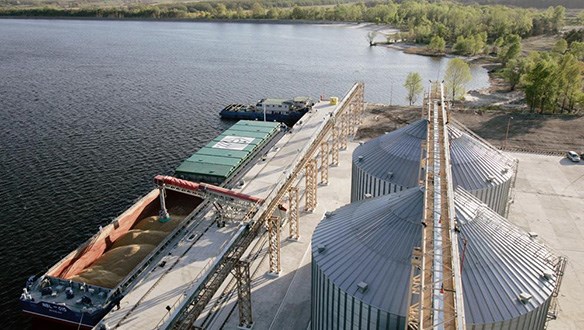

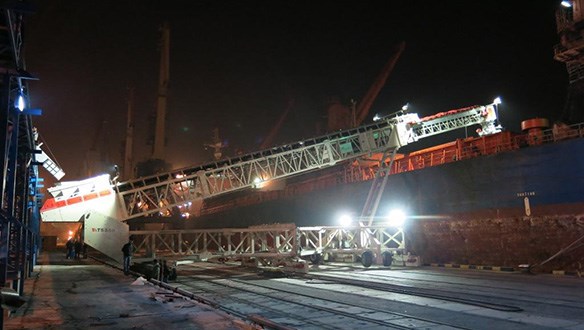

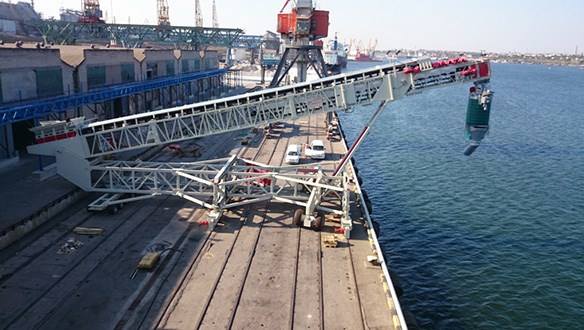

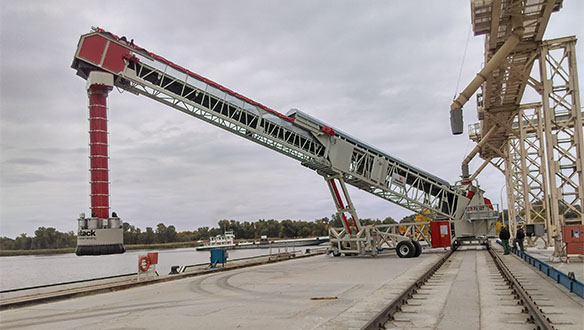

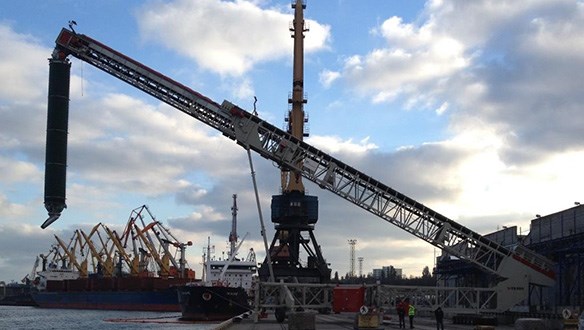

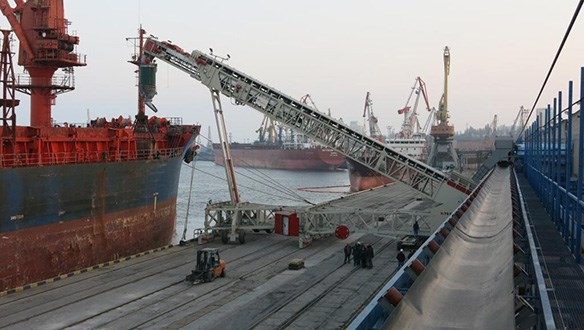

The Rail mounted telescopic shiploaders bring together the flexibility of the telescopic technology along with the ease of mobility of mounting on rails. The rail mounted shiploaders allow the unit to move easily parallel down the quayside with the telescopic conveyor system trimming the hatch of the vessel accordingly. They can load vessels up to Panamax size with ease and offer a complete range of options including chutes and dust suppression / extraction options for specific applications and materials (see below options for reference).

Options

  • Full integration with tripper/overhead conveyor systems to ensure a complete ‘package’ project.
  • Fully integrated generators to power entire shiploading system.

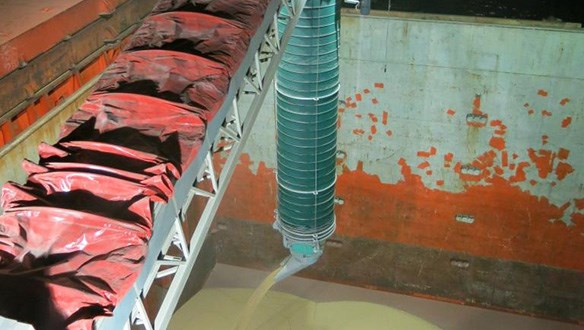

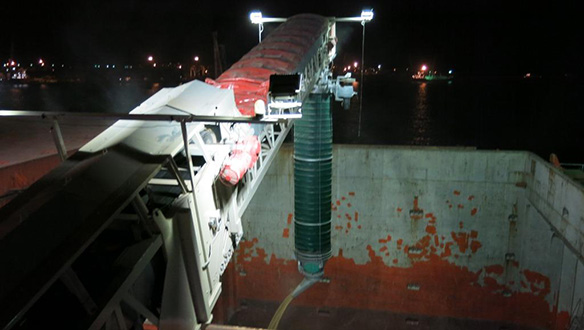

  • Dust Suppression Measures – Galvanised / Canvas Dust covers, Telescopic dust covers, dust extraction, Integrated telescopic chutes (Free-fall – Cascade Design), 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays.
  • Electrical Integration – Communication interlinks, radio remote controls, Ethernet connections and many more.
  • Marine Specification paint finish.
  • Customised projects to meet the needs of the application.

Features & Benefits

  • Radial and Telescopic features offer unrivalled trimming capabilities for most sized vessels
  • Smooth transition down quayside for quick hatch to hatch transfer.
  • Full Integration with over feeding eqwuipment – tripper / overhead conveyor systems.
  • Complete Dust Extraction / Suppression options for handling complete of materials.
  • Fully sealed feed-in / transfer and discharge points to eliminate spillage on site.
  • Loading rates up to 3,000TPH.

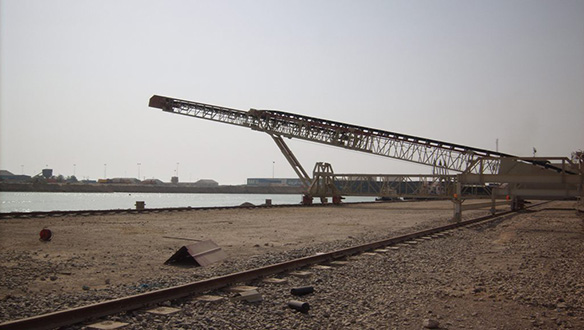

  • Fully extended lengths up to 58 metres (190ft).
  • Lead Times can range from 10 - 30 weeks.
  • Land / Sea Based Systems are available.
  • Eliminate double handling of material in Port /Inland Terminal.

Options

  • Full integration with tripper/overhead conveyor systems to ensure a complete ‘package’ project.
  • Fully integrated generators to power entire shiploading system.
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, Telescopic dust covers, dust extraction, Integrated telescopic chutes (Free-fall – Cascade Design), 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays.
  • Electrical Integration – Communication interlinks, radio remote controls, Ethernet connections and many more.
  • Marine Specification paint finish.
  • Customised projects to meet the needs of the application.

Applications

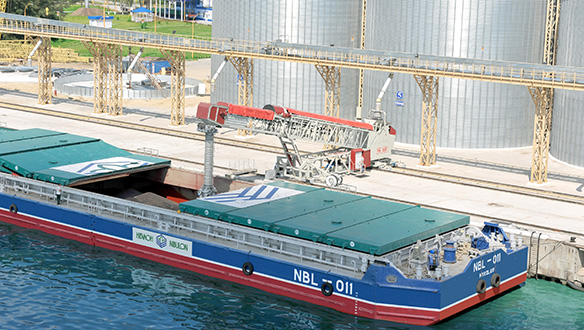

Rail mounted Shiploaders / Unloaders designed for loading Barges, Coasters, Handysize, Handymax, Panamax Vessels

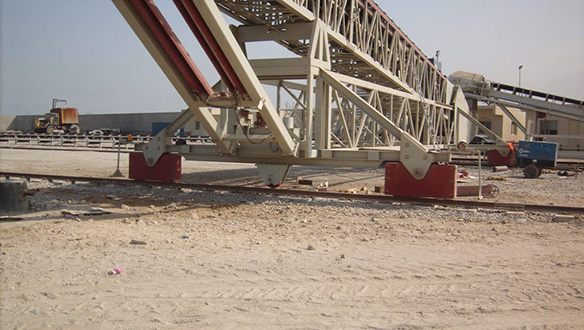

Ease of travel down quayside with integrated rail bogie units for smmoth transistion down the quayside.

Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore’s (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more....

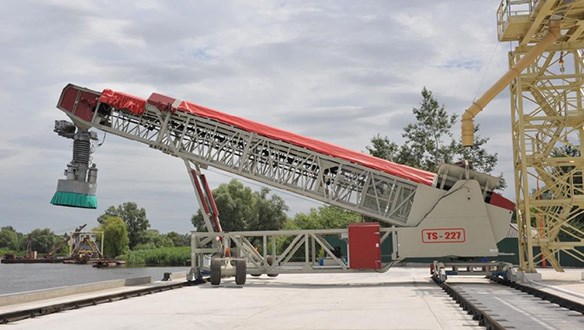

Can be easily fed from tripper conveyor systems, wheel loaders, trucks, overhead conveyors and many more systems.

Upgrade option available to incorporate radial function on rail mounted shiploader for further trimming capabilities.

Options

  • Full integration with tripper/overhead conveyor systems to ensure a complete ‘package’ project.
  • Fully integrated generators to power entire shiploading system.
  • Dust Suppression Measures – Galvanised / Canvas Dust covers, Telescopic dust covers, dust extraction, Integrated telescopic chutes (Free-fall – Cascade Design), 360 degree trimmer chutes, Rubber ‘sock’ chutes, water suppression and many more.
  • Sealing of all transfer points including side plates and under-trays.
  • Electrical Integration – Communication interlinks, radio remote controls, Ethernet connections and many more.
  • Marine Specification paint finish.
  • Customised projects to meet the needs of the application.

Case Studies

Case Studies


Mobile Ship Loading and Unloading Equipment

All Wheel Travel shiploaders loading and unloading fertiliser in North America

All Wheel Travel shiploader Revolutionising Port Operations in Russia

#MovingToMobile technology Revolutionising Port Operations in Russia. The TB58 Export All Wheel Travel Telescopic Shiploader.

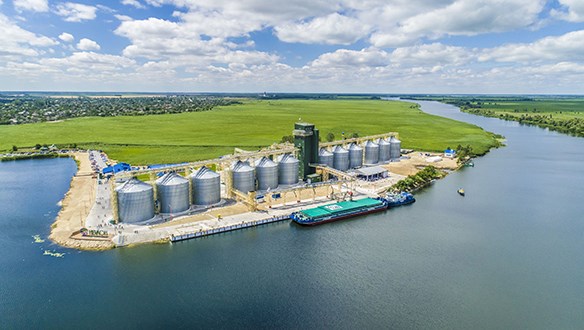

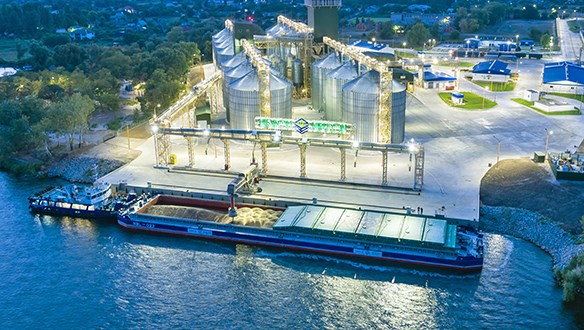

Railmounted shiploaders loading grain
