Cost effective systems to Handle Aggregates from Self-Unloading Vessels

// 25 May 2023 @ 14:33

The drive to lower or extract cost in the movement of aggregate remains a priority for any stakeholder. As a fundamental commodity in the construction supply chain, the focus on how it is moved and handled continues in an effort to reduce the high level of labour and time involved in the process.


While the majority of aggregates in Europe have historically been moved by truck and rail, increasing efforts to reduce environmental impacts, road congestion and pollution are driving companies to seek eco-friendly, efficient and reliable alternatives, such as marine transportation.

Marine Bulk Transportation


Transporting and handling aggregate cargo using self-unloading vessels offers significant advantages to companies seeking an environmentally friendly shipping solution. From crushed limestone to sand, gravel and stone, belt self-unloading technology offers significant advantages including reducing cost because of the reduced labour required to complete the process. Short sea shipping routes in the North Sea, the Atlantic Ocean and the Mediterranean provide a well-established transportation network to facilitate the process and the development of self-unloading vessels are designed to facilitate the process.

Traditional methods of unloading bulk material


International Sales Manager with Telestack, the stalwarts in mobile port equipment, explains the benefits of self-unloading vessels, “Belt self-unloading vessels are equipped with long, discharge booms and integrated conveyor belts. When aggregate cargo is discharged from the vessel, it is smoothly delivered directly from the holds along conveyer belts through the boom to shore at a rate of up to 3,000 tonnes/hour and more.”

It is at this point however that many Ports encounter difficulties in handling the aggregates from the discharge boom point and onwards to storage or trucks for on-going transport. Typically, this is done via a dedicated fixed hopper/conveyor system which transfers the material to the storage area. This means that the port’s infrastructure needs a dedicated area for discharge, which in some cases is not feasible and limits the flexibility of both the vessel owner/operator and the port/stevedore on shore.

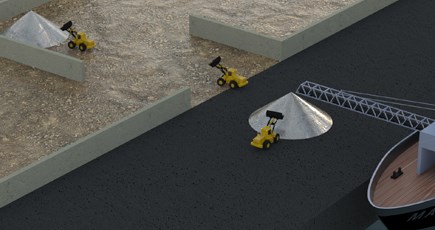

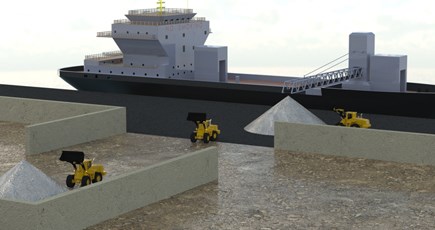

In the event of no fixed hoppers/conveyor system, the material is transferred directly to the ground for handling with wheel loaders, grabs and trucks. When handling tonnages of up to 3,000 tonnes/hour, this can mean many wheel loaders, and trucks operating in the boom discharge point struggle to keep up with the tonnage requirements of transferring the material away from the shoreside. The self-unloading vessel has a fixed window to discharge, so this puts many pressures and costs on the shore operators to move/transfer the material as quickly as possible to ensure unloading rates are maintained.

Donnelly continues “This greatly increases the cost per tonne via double/triple handling of the aggregate via the auxiliary equipment with high fuel and labour costs. This also highlights a major safety concern working under pressure with an extensive range of equipment required in a single area during the unloading phase.”

In certain scenarios where the vessel can discharge directly to the storage area, the limited space requirements mean the material still needs moved or stockpiled to maximise the current infrastructure, again causing a ‘bottleneck’ in the handling process while increasing costs and further traffic on site. Also, this technology means the vessel or discharge boom does not have to move at any stage during the unloading process to fill the stockyard area, as the mobile unloading/stacking system is doing the material transfer saving time and labour.

A flexible alternative method to transfer bulk from self unloading vessels

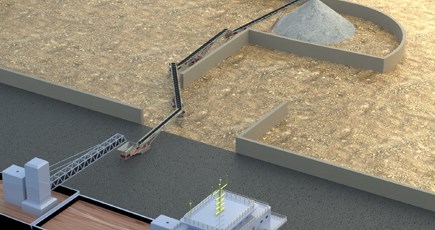

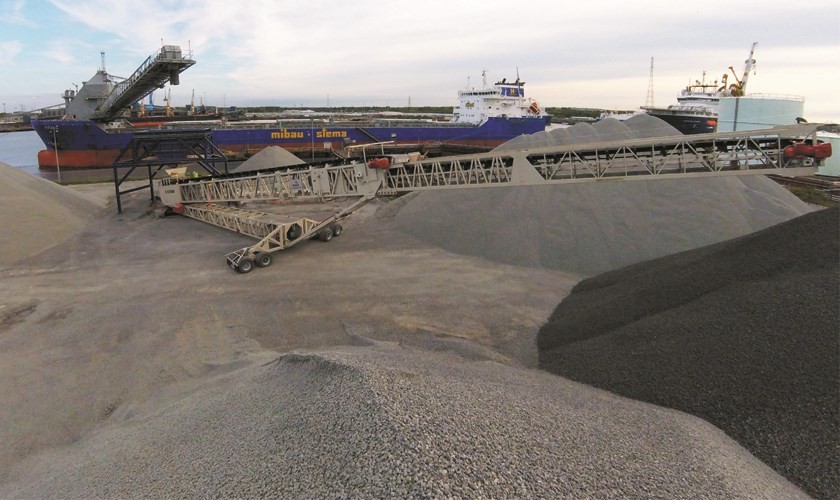

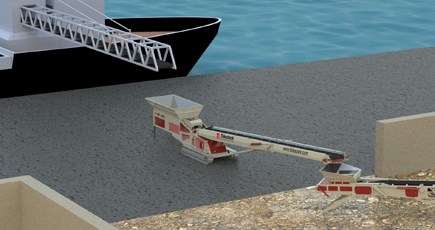

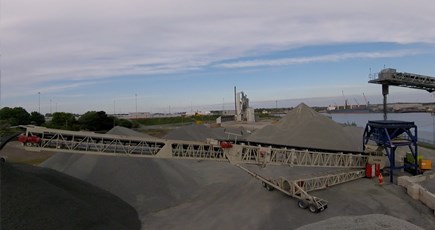

Telestack offers a solution to this issue by utilising a mobile conveyor system direct from the discharge point (vessel discharge boom) to the storage area while eliminating the need for any wheel loaders, grabs or any further resources. The mobility of these conveyor systems allows the equipment to be used when the vessel is berthed and moved off-site or into the storage area, which makes it a perfect solution for multi-cargo berths that do not have a dedicated unloading facility.

The range of designs from Telestack allows for handling rates from 200 tph to 1,000 tph from smaller 3,000 dwt to 10,000 dwt self-unloading discharge vessels. The range also extends to the largest self-unloaders with handling rates from 1,000 tph up to 3,000 tph of aggregates. These proven self-propelled mobile systems can handle the smallest to the largest self-unloading vessels, with many benefits:

-          Reduce costs per tonne.

-          Eliminate double/triple handling at the shoreside.

-          Reduce fuel/labour costs by removing wheel loaders/trucks and grabs from the handling process.

-          Improve site safety with less traffic in specific areas.

-          Reduce dust emissions with a comprehensive range of dust control management options.

-          Reduce CO2 emissions with all electric mobile conveyor systems.

-          Direct material transfer from ‘Vessel to Stockyard’ – remove bottlenecks.

The optional all-electric driven units ensure that environmental and emissions concerns are addressed in all cases, meeting stricter port regulations and reducing carbon footprint. Also, further options in relation to dust-enclosed conveyor systems and dust extraction can all be utilised on the equipment, depending on local regulations.

The Telestack mobile conveyor systems utilised in combination with the self-unloading vessels offer a significant advantage in offering new opportunities for ports/stevedores to establish new business and processes which will make them more competitive in their industry. By improving this process of handling the material more efficiently operators can utilise space on the shore and increase bulk tonnages through their facility.
